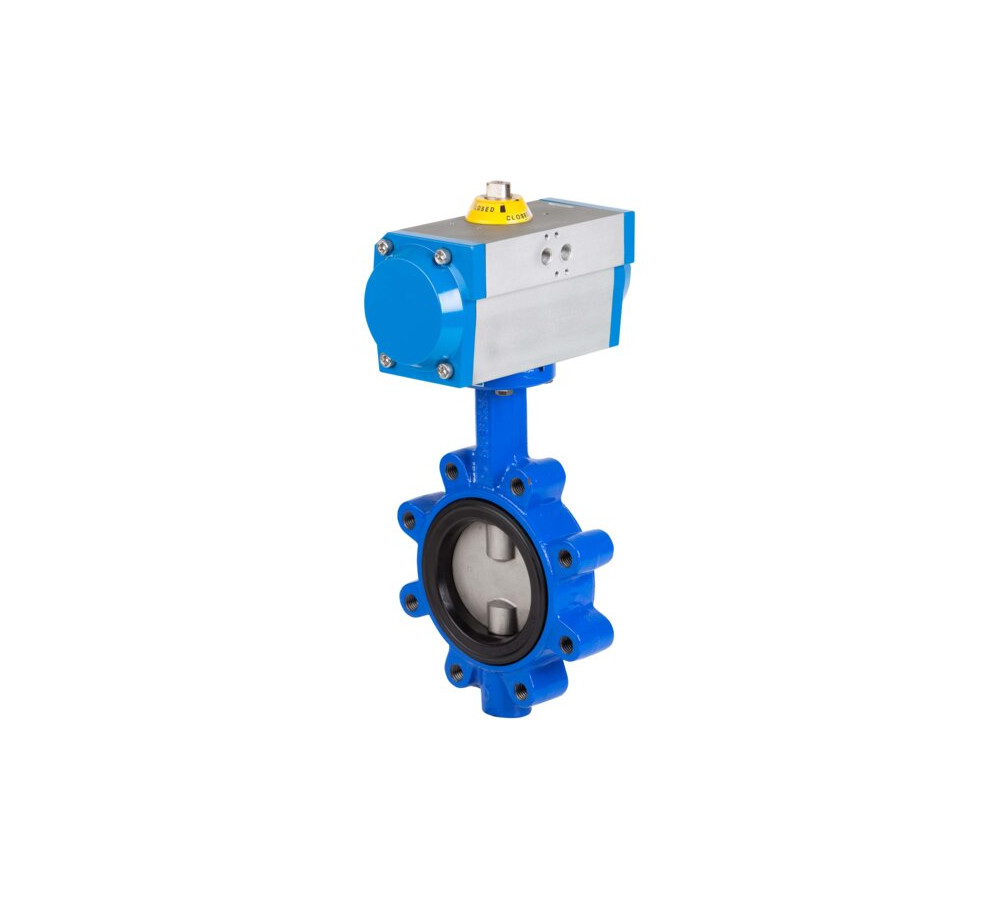

Butterfly valve LUG type (ANSI flanges)
Category:Pneumatic actuator GN spring return
Information
Information
Butterfly valve LUG type (ANSI flanges).Body: ductil iron GGG-40. Disc: CF8M (316).Seat: EPDM. Stem o’ring NBR.Working temperature -20ºC +120ºC.Mounting actuator according to ISO 5211 std.Handle up to 10” with gear operator from 12”.With GNP actuator.-4ºF + 248ºF
Documentation
Specifications
| reference | size | minimum purchase unit | weight (kg) | box / carton |
|---|---|---|---|---|
| 5508A 09 51 | V. 2108A 2" W/ACT. GN-17/S5 | 1 | 5.96 | 1/1 |
| 5508A 10 144 | V. 2108A 2"1/2 W/ACT. GNP-94/S5 | 1 | 9.4 | 1/1 |
| 5508A 11 78 | VALVE 2108A 3" WITH ACTUATOR GN-30 S4 | 1 | 11.37 | 1/1 |
| 5508A 12 86 | V. 2108A 4" W/ACT. GN-30/S5 | 1 | 14.67 | 1/1 |
| 5508A 16 81 | V. 2108A 8" W/ACT GN-45/S4 | 1 | 29.22 | 1/1 |
| 5508A 18 95 | V. 2108A 10" W/ACT GN-50/S4 | 1 | 47.23 | 1/1 |
| 5508A 20 90 | V. 2108A 12" W/ACT GN-55 S6 | 1 | 70.9 | 1/1 |
