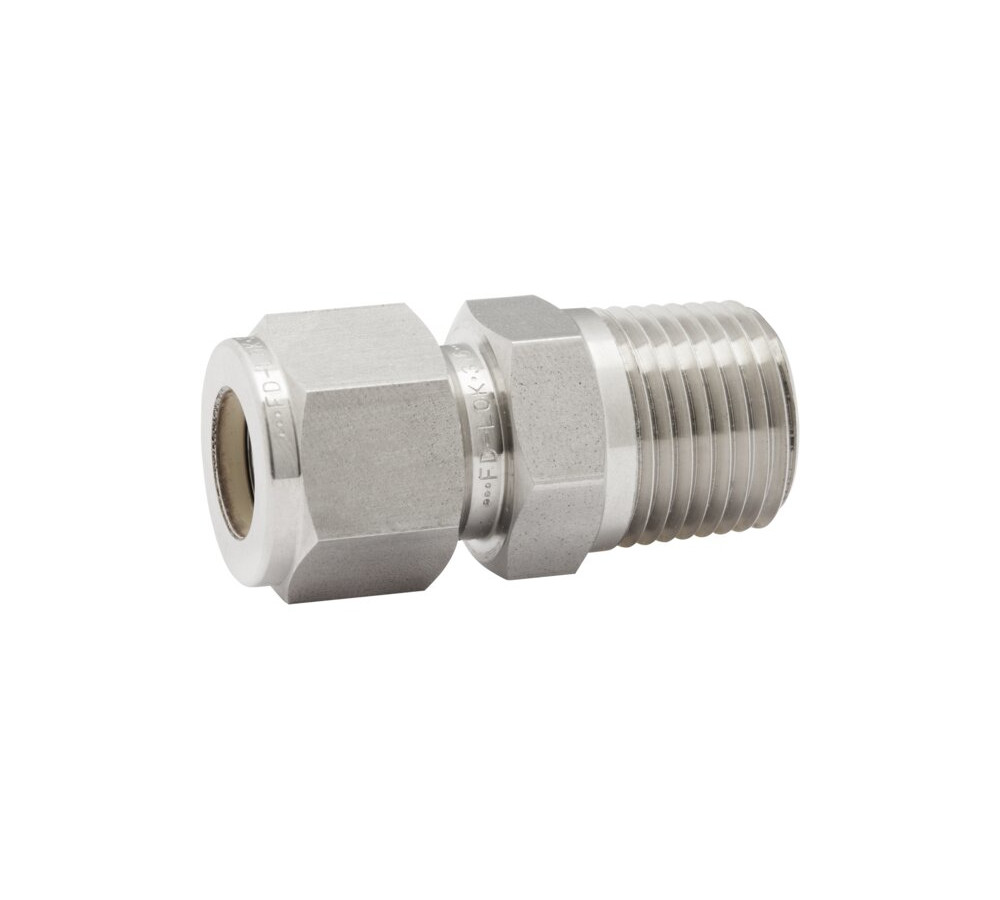

Material AISI 316. Thread: ISO 7-1 RMax. working pressure: 315 bar.
Documentation
Specifications
| reference | size | minimum purchase unit | weight (kg) | box / carton |
|---|---|---|---|---|
| 8405 02 02 | CONNECTOR THREAD M (BSPT) - TUBE 1/4" x 1/4" (INCH) | 5 | 0.03 | 30/540 |
| 8405 03 02 | CONNECTOR THREAD M (BSPT) - TUBE 3/8" x 1/4" (INCH) | 5 | 0.042 | 20/360 |
| 8405 03 03 | CONNECTOR THREAD M (BSPT)- TUBE 3/8" x 3/8" (INCH) | 5 | 0.046 | 20/360 |
| 8405 04 02 | CONNECTOR THREAD M (BSPT) - TUBE 1/2"x 1/4" (INCH) | 3 | 0.086 | 12/216 |
| 8405 04 03 | CONNECTOR THREAD M (BSPT) - TUBE 1/2" x 3/8" (INCH) | 3 | 0.086 | 12/216 |
| 8405 04 04 | CONNECTOR THREAD M (BSPT)- TUBE 1/2" x 1/2" (INCH) | 3 | 0.095 | 12/216 |
