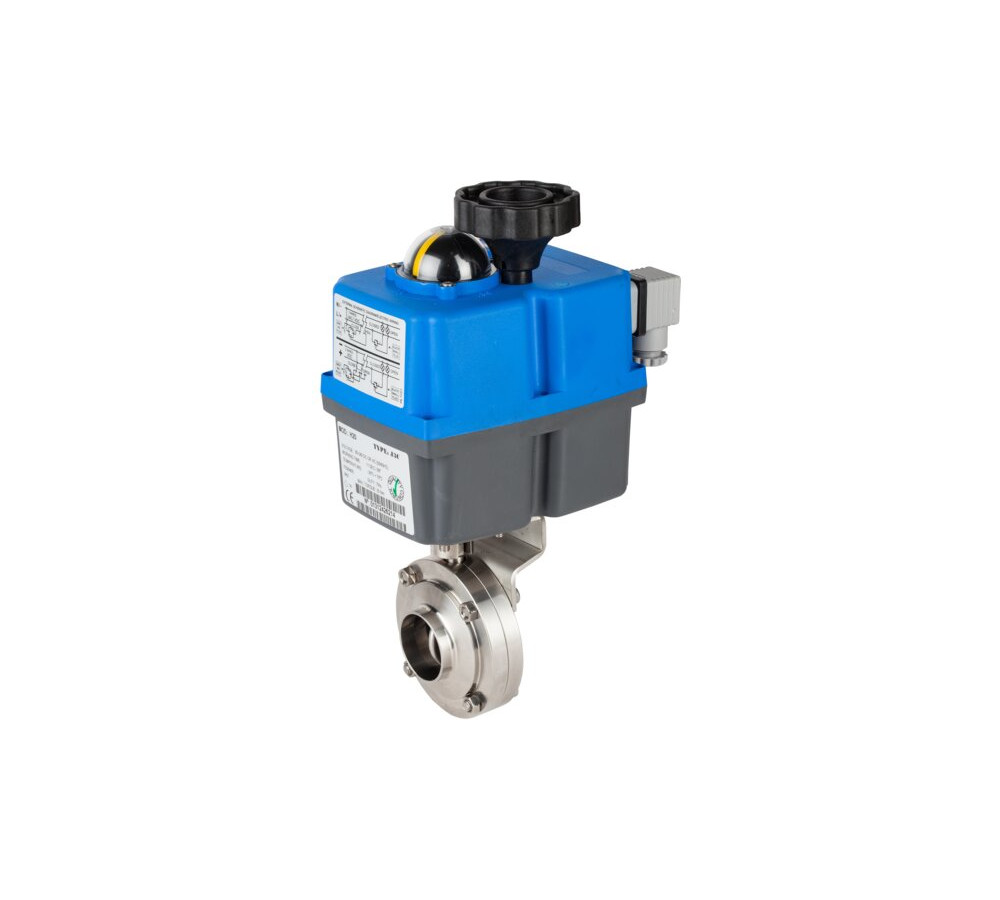

Butterfly valve end welded/welded. Stainless steel body AISI 304. EPDM elastomer (other material please consult us). End welded/welded. Max. working pressure 10 bar. Max. temp. 120ºC. Manually operated: 3 position.The required tension supply to be specified.
Sənədlər
Spesifikasiyalar
| reference | size | minimum purchase unit | weight (kg) | box / carton |
|---|---|---|---|---|
| 5653E 06 51 | VALVE 2943E 1" + ELECTRIC ACTUATOR GE-0 24/240V | 1 | 3.6 | 1/1 |
| 5653E 07 51 | VALVE 2943E 1 1/4" + ELECTRIC ACTUATOR GE-0 24/240V | 1 | 4 | 1/1 |
| 5653E 08 51 | VALVE 2943E 1 1/2" + ELECTRIC ACTUATOR GE-0 24/240V | 1 | 2.79 | 1/1 |
| 5653E 09 51 | VALVE 2943E 2" + ELECTRIC ACTUATOR GE-0 24/240V | 1 | 4.35 | 1/1 |
| 5653E 10 51 | VALVE 2943E 2 1/2" + ELECTRIC ACTUATOR GE-0 24/240V | 1 | 3.6 | 1/1 |
| 5653E 10 52 | VALVE 2943E 2 1/2" + ELECTRIC ACTUATOR GE-0 24/240V | 1 | 0 | 1/1 |
| 5653E 11 47 | VALVE 2943E 3" + ELECTRIC ACTUATOR GE-05 24/240V | 1 | 4.2 | 1/1 |
| 5653E 12 47 | VALVE 2943E 4" + ELECTRIC ACTUATOR GE-05 24/240V | 1 | 0.01 | 1/1 |
